Start with the ER series, then confirm the nut style
When a buyer searches for ER collet nut dimensions, the first question is not only ER11, ER16, ER20, ER25, ER32, ER40 or ER50. The buyer also needs to confirm the nut style. ER-A, ER-UM, ER-M, ER-MS, mini, hex, bearing style and sealing nuts can have different outside diameters, heights, thread forms, wrench engagement and front-end shape. A loose description such as "ER32 nut" is often not enough for a safe quotation.
The easiest RFQ is a photo of the old nut, a photo of the holder nose, the ER series, the holder thread if known, and the wrench style. This lets us check whether the buyer needs a standard nut, a smaller nose mini nut, a UM style nut, a sealing nut, or a bearing type nut for smoother tightening. For repeat distributors, we can record the agreed model, label and packing format so the next replenishment order is faster.
Standard, mini, bearing and sealing nuts solve different problems
Standard ER nuts are used in many milling, drilling and general CNC setups. Mini nuts help where the holder nose must stay compact, such as tight fixture clearance or smaller machines. Bearing style nuts are chosen when the buyer wants lower tightening friction and more consistent clamping force. Sealing nuts are used when coolant control is part of the job, especially when coolant-through tooling or cleaner coolant direction is required.
For a mixed order, the RFQ should list each nut type by ER series and quantity. It should also state whether the buyer needs matching spanners, sealed disks, buyer labels, barcode labels or separate carton marks. This is where ZSCNC is useful: we can organize low unit-value accessories in one clear purchasing list instead of forcing the buyer to manage several small suppliers.
Dimensions matter because the nut is part of the clamping system
An ER nut is not just a threaded cap. The thread must fit the holder. The inside extraction ring must hold and release the collet correctly. The contact face should be clean. The wrench slots, flats or holes must match the wrench the operator already uses. If any of these points are wrong, the operator may feel resistance during tightening, the collet may not seat correctly, or the distributor may receive complaints even when the collet itself is acceptable.
For dimensions, buyers usually ask about thread, outside diameter, overall height, nose shape, wrench type and sealing disk compatibility. We do not recommend choosing from one photo only. Two nuts can look similar from the front but differ in thread or wrench engagement. A short checklist is safer than a cheap but uncertain replacement.
Sealing nuts need more information than a normal replacement nut
Sealing ER nuts are requested for coolant-through or coolant-control work, but the word "sealing" is not enough. The RFQ should mention the ER series, tool shank diameter range, coolant disk or sealing disk request, and whether the buyer is replacing an old sealed nut or building a new holder and collet package. If the disk and nut do not match the tool diameter or holder system, the part may look correct but fail to seal properly in real use.
For customers who sell to workshops, neutral packing and clear model labels may be enough. For buyers selling under their own brand, ZSCNC can prepare buyer labels, barcode labels, carton separation and model stickers. This helps keep ER-A, ER-UM, mini and sealing nuts separate when one shipment contains many small accessory lines.
Quality checks for ER nut export orders
Because ER nuts are small and inexpensive, some buyers only compare unit price. That creates risk. Before shipment, ZSCNC can check visible thread condition, model marking, coating, burrs, rust protection, wrench engagement, nut style, quantity separation and label accuracy. These are practical checks, especially for mixed distributor orders where ER16, ER20, ER25, ER32 and ER40 nuts are packed together.
Runout is affected by the whole system, not the nut alone. The holder taper, collet accuracy, tool shank, tightening method and machine spindle all matter. A good nut still matters because it helps the collet seat consistently and protects repeat tool changes. For buyers comparing suppliers, quality should mean more than a polished surface. It should include thread fit, extraction ring condition, packing control and repeat model accuracy.
Combine nuts with ER collets, holders and spanners
ER nuts are often purchased with ER collets, ER chuck holders and spanners. Quoting the whole clamping system together helps buyers reduce freight cost and avoid mismatched accessories. For example, a buyer can send one list for ER32 collets, ER32 UM nuts, ER32 spanners and BT or CAT ER32 holders instead of buying each accessory separately.
This is where our price and delivery advantage is practical. Common ER accessory groups can be organized into one purchasing plan, one export shipment and one packing rule. For urgent replenishment, we can help identify stock-friendly models first. For repeat OEM orders, we can keep the buyer's label, carton mark and model list on file to reduce communication time in the next order.
Replacement orders should repeat the previous style
Many ER nut orders are not new projects. They are replacement stock for a distributor, toolroom or maintenance department. In those cases, repeatability matters more than adding new styles. The buyer should send the old order record, nut photo, holder type or sample label so the replacement batch matches what users already have.
ZSCNC can quote economical options for price-sensitive orders and better finish options for buyers who sell into CNC machining customers. We do not recommend comparing only the lowest unit price without checking nut type, thread, finish, extraction ring and wrench compatibility. A low price becomes expensive if the nut cannot be used with the holder already in the workshop.
Product groups ZSCNC can quote

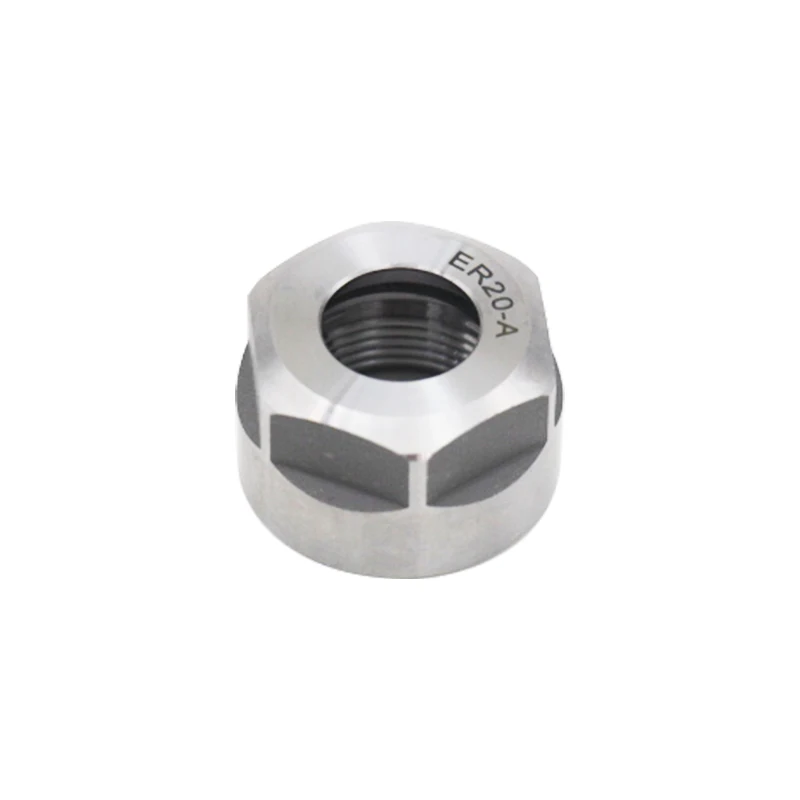

ER-A nuts
Common A type ER nuts for standard ER collet chuck systems and regular replacement stock.

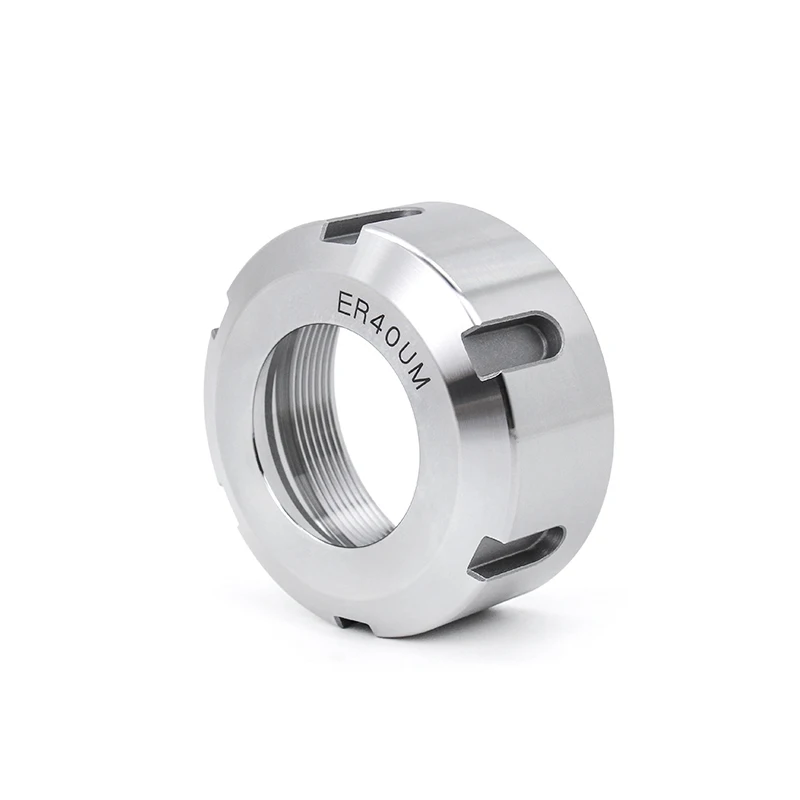

ER-UM nuts
UM style nuts often requested with ER25, ER32, ER40 and related CNC holder systems.
Mini and MS nuts
Compact nut styles for smaller holder noses, tighter workholding clearance and mixed accessory orders.
Sealing nuts
Used when coolant sealing, coolant disks or internal coolant tooling must be confirmed before shipment.
Bearing style nuts
For buyers who need smoother tightening feel, lower friction and more consistent clamping behavior.
Spanners and kits
Matching ER-A, ER-UM, ER-M and related spanners can ship with the nuts to avoid toolroom mismatch.
Photos for RFQ matching
RFQ checklist
For a faster quotation, send these details when possible:
- ER series, such as ER11, ER16, ER20, ER25, ER32, ER40 or ER50
- Nut style, such as A, UM, M, MS, mini, hex, bearing or sealing type
- Holder thread, old model marking or holder nose photo
- Outside diameter, height or drawing if dimensions are strict
- Sealing disk, coolant disk or coolant-through requirement
- Coating, surface finish or rust protection request
- Matching spanner type and quantity
- Quantity by model and target delivery time
- Neutral packing, OEM label, barcode label or carton mark request
Why buyers use ZSCNC
ZSCNC is useful for overseas buyers who want practical sourcing support, not only a product photo. We can help confirm common model direction, compare total purchasing cost, prepare quick quotations for mixed orders, check visible quality points before shipment and arrange neutral or OEM packing. For distributors, this matters because ER nuts usually sell together with collets, holders, spanners and other small accessories.
Our price advantage comes from organizing common CNC tooling accessories in one supply chain instead of treating every small nut as a separate project. Our delivery advantage comes from familiar model groups, repeat-order records and stock-friendly sourcing. Our quality advantage comes from checking model, quantity, visible finish, thread condition, matching accessories and packing before shipment. The goal is simple: help the buyer receive usable ER nut stock with fewer small mistakes.
FAQ
Are ER nuts interchangeable?
No. An ER nut must match the ER series, nut style, holder thread and wrench type. ER32 only describes the collet series. It does not confirm whether the buyer needs UM, A, M, MS, mini, hex, bearing or sealing style.
What details are needed for ER collet nut dimensions?
Useful details include ER series, nut type, holder thread, outside diameter, overall height, wrench style, coating request, coolant sealing requirement and a photo or old part number when available.
When should a buyer choose a sealing ER nut?
Choose a sealing ER nut when the machining setup needs coolant through the tool or better coolant control at the holder nose. The RFQ should state ER series, tool shank diameter range and whether sealing disks or coolant disks are required.
Should I order spanners with ER nuts?
Yes, if the buyer does not already have the correct wrench style. Matching spanners reduce setup mistakes and help distributors avoid after-sales confusion.
Can ER nuts ship with ER collets and holders?
Yes. ZSCNC can quote ER nuts together with ER collets, ER chuck holders, collet spanners, pull studs and other CNC tooling accessories for mixed distributor or workshop replenishment orders.
