Choose by setup method, not only by photo
Edge finders are small tools, but buyers still need to match them to the way the shop sets up work. A manual milling shop may prefer a simple mechanical edge finder because it is low cost, easy to understand and easy to keep in a toolbox. A CNC workshop or training center may prefer electronic, sound or lamp indication because the contact signal is easier for different operators to see.
A mechanical edge finder rotates in the spindle. As the tip touches the workpiece edge, the contact end lines up briefly and then kicks away. The operator then compensates by half of the tip diameter to set the true edge. This is why the tip diameter matters. A buyer using a 0.200 inch tip will normally compensate by 0.100 inch, while metric buyers may work around 10 mm or 20 mm styles depending on the tool.
Electronic edge finders give a light, sound or visual signal when contact is made. They are convenient for faster confirmation, but the buyer should tell us whether the workpiece is conductive, whether batteries are acceptable, and whether the tool will be used on a manual mill, CNC mill or lathe setup.
Mechanical, electronic, center finder and Z axis setter
These tools are often ordered together, but they solve different setup problems. If the inquiry only says edge finder, the quotation may miss the actual application. ZSCNC separates the RFQ by function so the buyer can receive the correct setup tool instead of a mixed, unclear item list.

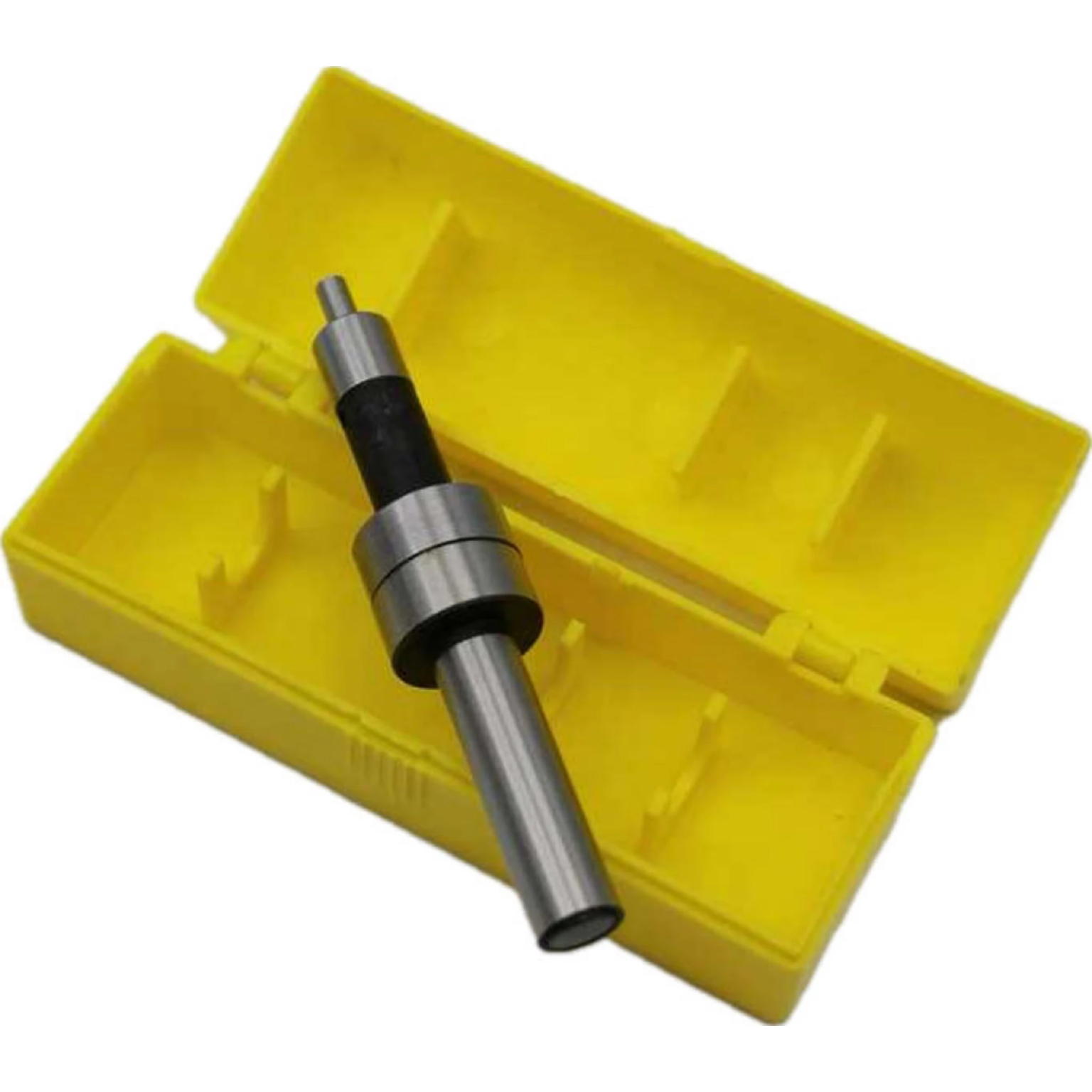

Mechanical edge finder
Used for locating a workpiece edge on a milling machine. It is usually economical and suitable for general shop use.
Electronic edge finder
Used when the buyer wants light, sound or clearer contact indication during setup. Battery and workpiece material should be confirmed.
Center finder
Used for locating center lines, holes, bosses, tubes or scribed reference points. It should not be treated as the same tool as a standard edge finder.
Z axis zero setter
Used for tool height or tool length setup. It is normally quoted separately from X/Y edge finding tools.
What serious buyers confirm before ordering
Good edge finder suppliers do not quote by one product name alone. The buyer should confirm the shank diameter, body diameter, tip diameter, overall length, signal style, battery type, magnetic or non magnetic requirement, quantity, packing and target market. For replacement orders, a clear photo of the old tool and a measured shank/tip diameter usually saves time.

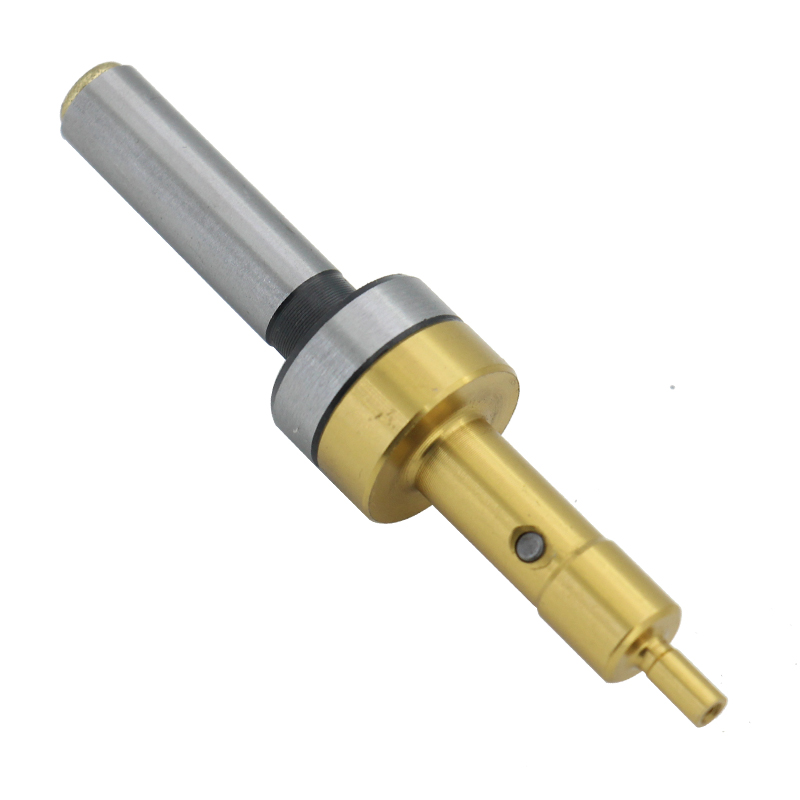

For distributors, common requests include mechanical edge finders, ES style electronic edge finders, CE420 mechanical types, CE430 non magnetic styles, center finders and digital Z axis zero setters. Exact model names can vary by market, so the safest quotation method is to send the model list and one reference photo per group.
- Machine use: manual milling, CNC milling, lathe setup, training shop or maintenance room.
- Tool type: mechanical edge finder, electronic edge finder, center finder or Z axis zero setter.
- Size details: shank diameter, body diameter, tip diameter, measuring height and total length.
- Signal style: mechanical kick, LED, sound, optical contact or digital display.
- Order details: quantity, buyer label, OEM packing, neutral packing, carton mark and destination country.
Accuracy comes from the tool and the setup
An edge finder is a setup aid, not a magic guarantee. Repeatability depends on the tool, the spindle, collet holding, workpiece clamping, surface cleanliness, approach speed and operator method. A dirty workpiece edge, worn collet or loose vise can make even a good edge finder give poor results.
For mechanical types, the operator should approach slowly and watch the kick point. For electronic types, the battery, contact response and workpiece surface condition should be checked before use. For distributors, it is better to describe these tools honestly than to promise unrealistic accuracy from a low-cost accessory.
Quality checks before export shipment
ZSCNC can check the visible finish, shank surface, contact point, spring movement, battery compartment, light or sound response, model marking, quantity separation and packing before shipment. For electronic edge finders, we pay attention to signal response and battery compartment condition. For mechanical edge finders, shank condition, movement and contact end finish are important.
This matters for distributors because small setup tools are easy to mix. CE420, CE430, ES20, center finder and Z axis setter orders should be separated by label and carton. ZSCNC can support neutral boxes, model stickers, buyer SKU labels and OEM packing so the buyer can receive stock that is easier to sell or place into a warehouse system.
Price, delivery and mixed order advantage
Edge finders often ship with clamping kits, ER collets, tool holders, drill chucks, boring heads, machine vises and machine tool accessories. Adding setup tools to a larger order can reduce the cost of scattered purchasing and small-parcel freight. This is where ZSCNC's price and delivery advantage becomes practical for overseas buyers.
Buyers can send one combined list for edge finders, Z axis setters, ER collets, holders and clamping accessories. We can group common items, confirm model direction, quote a realistic lead time, check visible quality points and prepare neutral or OEM packing in one shipment.
Product groups ZSCNC can quote
Mechanical edge finders
Economical setup tools for locating workpiece edges on milling machines. Suitable for manual shops, maintenance rooms and reseller stock.
Electronic edge finders
Light, sound or optical contact indication for faster visual confirmation. Useful for CNC setup, training and mixed-operator workshops.
Center finders
Used for locating hole centers, round work, tube centers, bosses and scribed reference marks.
Z axis zero setters
Used for tool length or height setting during CNC and milling setup. Can be quoted together with edge finders but should be listed separately.
Photos for RFQ matching
RFQ checklist
For a faster quotation, send these details when possible:
- Tool type: mechanical, electronic, center finder or Z axis zero setter.
- Shank size and body diameter.
- Tip diameter or measuring height.
- Signal style: mechanical kick, LED, sound, optical contact or digital display.
- Battery requirement for electronic types.
- Machine use and workpiece material.
- Accuracy or repeatability expectation, if the buyer has one.
- Quantity by model.
- Neutral packing, OEM packing, buyer SKU label or carton mark request.
Why buyers use ZSCNC
ZSCNC is useful for overseas buyers who want practical sourcing support, not only a product photo. We can help confirm common model direction, compare total purchasing cost, prepare quick quotations for mixed orders, check visible quality points before shipment and arrange neutral or OEM packing.
Our price advantage comes from organizing common CNC tooling accessories in one supply chain. Our delivery advantage comes from familiar model groups and repeat-order records. Our quality advantage comes from checking model, quantity, visible finish, matching accessories and packing before shipment.
FAQ
What is an edge finder used for?
It helps locate a workpiece edge, part zero, center line or reference point before machining begins. Mechanical styles normally require compensation for half of the tip diameter after contact.
Should I choose mechanical or electronic edge finders?
Mechanical tools are simple, economical and common for manual milling. Electronic tools are useful when the buyer wants light, sound or clearer contact indication, but battery and conductivity should be confirmed.
What information is needed for an edge finder RFQ?
Send tool type, shank size, tip diameter, signal style, battery requirement, quantity, target market and packing request. A reference photo is helpful when the buyer is replacing an old tool.
Can Z axis zero setters be quoted together?
Yes. Edge finders, center finders and Z axis zero setters can be quoted in the same setup tool order, but each tool should be separated by model and function.
Can ZSCNC support distributor packing?
Yes. ZSCNC can support neutral packing, model labels, buyer SKU labels, carton marks and OEM packing for distributor orders.
