Updated July 4, 2026 by ZSCNC CNC Tooling Supply.
Straight holders solve reach and clearance problems
Straight shank collet chucks are often used as extension holders. They can help reach deeper features, avoid fixture interference, or adapt a tool to a holder or spindle setup that accepts a cylindrical shank.
This category should not be quoted only by ER size. The shank diameter, total length, ER series, tool side and machining purpose all decide whether the holder is suitable.
Straight shank size and tolerance matter
The straight shank is the part clamped by another holder, sleeve or spindle setup. Buyers should confirm whether they need C16, C20, C25, C32 or another shank diameter, and whether the application needs a tighter cylindrical shank tolerance. A poor shank fit can reduce rigidity before the ER collet even starts doing its job.
For repeat orders, the buyer should keep the old model code, shank diameter, total length and ER series together. A C20 ER16 holder and a C20 ER20 holder may look similar in a photo, but they do not support the same tool range.
Choose ER extension, side lock or powerful chuck style
ER extension bars are flexible because they accept ER collets for different tool shank sizes. Side lock straight shanks are used for tools with flat shanks where screw locking is preferred. Powerful straight collet chucks are selected when the buyer needs stronger clamping than a light extension holder.
Long reach always increases risk of vibration. Buyers should tell us cutting material, tool diameter, extension length and whether the job is drilling, finishing, milling or deep-hole work. For rough milling, the safest answer may be a shorter and stronger holder instead of a long extension bar.
Runout depends on the full assembly
Runout on a straight collet chuck is affected by the straight shank, the holder that clamps it, the ER nut, the ER collet, the tool shank and the extension length. A long extension magnifies small errors. This is why the RFQ should state the use instead of only asking for the lowest price.
If the buyer needs drilling, reaming, finishing or rigid tapping, mention it before quotation. ZSCNC can then suggest whether an ER extension, side lock holder or stronger straight collet chuck is the better direction.
Quality points for extension holders
ZSCNC can check shank surface, holder nose, ER thread, nut matching, visible runout condition, model marking and protective packing before shipment.
For longer bars, packing is important because bent or damaged shanks create direct machining problems. We can separate lengths and models by carton label for distributor stock. Protective sleeves, oiling and separated inner boxes are useful for long and slim extension bars.
Price and delivery through model grouping
Straight collet chucks are usually ordered with ER collets, ER nuts, spanners and CNC tool holders. Combining the related items helps reduce freight cost and avoids a situation where a buyer receives extension bars but no matching collets.
ZSCNC can quote common C16, C20, C25, C32 and related straight shank requests, with neutral packing or buyer labels for repeat orders. Our price advantage comes from grouping common ER accessories together, and our delivery advantage comes from keeping model and packing records for repeat buyers.
Product groups ZSCNC can quote
ER straight shank extension bars
Cylindrical shank ER holders for reach and clearance applications.

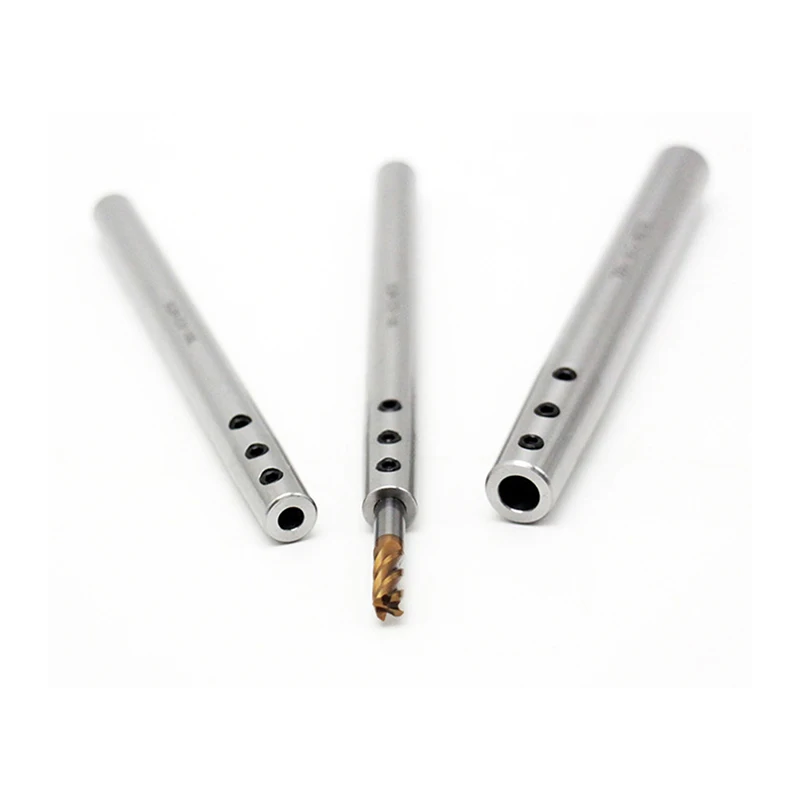

Side lock straight shanks
Straight holders with screw locking for selected tool shank styles.

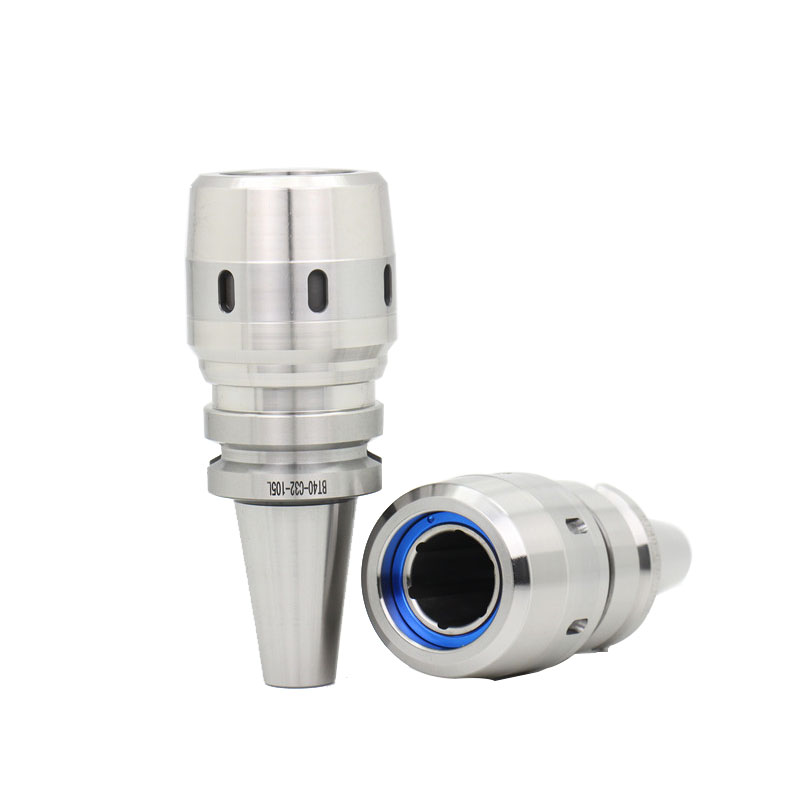

Powerful straight collet chucks
Stronger clamping holder style for selected milling applications.

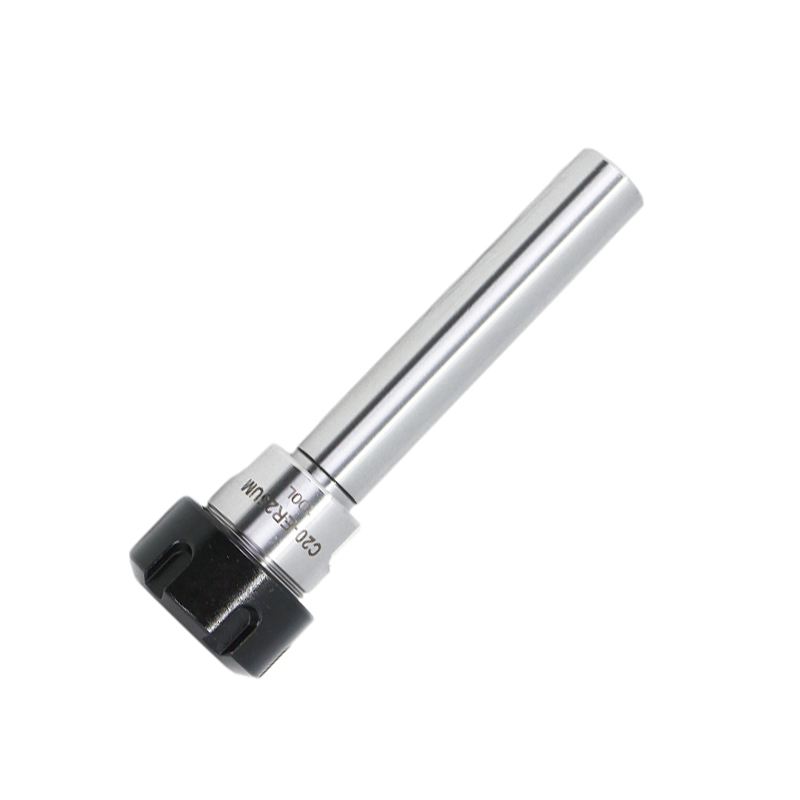

Deep hole machining extensions
Longer extension bars where reach and rigidity must be balanced.
Photos for RFQ matching
RFQ checklist
For a faster quotation, send these details when possible:
- Shank diameter
- ER or holder series
- Total length
- Nose diameter or clearance limit
- Tool clamping size
- Machining use
- Extension length risk
- Runout request
- Matching collets, nuts or spanners
- Quantity
- Packing method
Why buyers use ZSCNC
ZSCNC is useful for overseas buyers who want practical sourcing support, not only a product photo. We can help confirm common model direction, compare total purchasing cost, prepare quick quotations for mixed orders, check visible quality points before shipment and arrange neutral or OEM packing.
Our price advantage comes from organizing common CNC tooling accessories in one supply chain. Our delivery advantage comes from familiar model groups and repeat-order records. Our quality advantage comes from checking model, quantity, visible finish, matching accessories and packing before shipment.
FAQ
What is a straight collet chuck used for?
It is used for tool clamping, reach extension, clearance and adapting a cylindrical shank holder setup.
Is a longer extension always better?
No. Longer projection can reduce rigidity and increase vibration. The length should match the machining task.
Can ZSCNC quote matching ER collets?
Yes. ER collets, nuts and spanners can be quoted together with straight extension holders.
What details are needed for an ER extension bar RFQ?
Send shank diameter, ER series, length, clamping range, quantity and packing request.
