Pull Stud Supplier for BT, CAT, DIN, JIS, MAS and CNC Retention Knob Orders

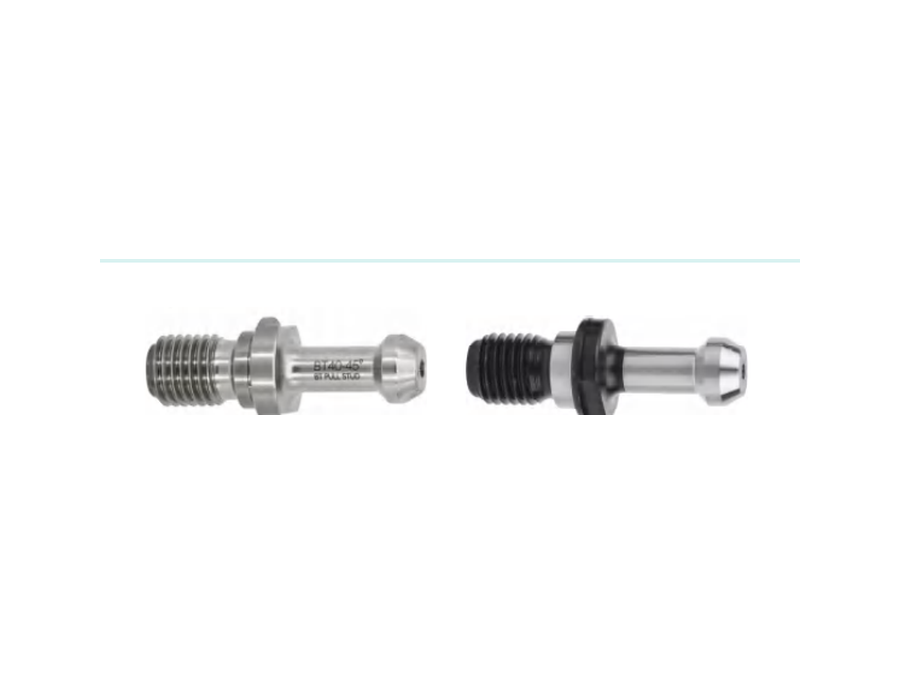

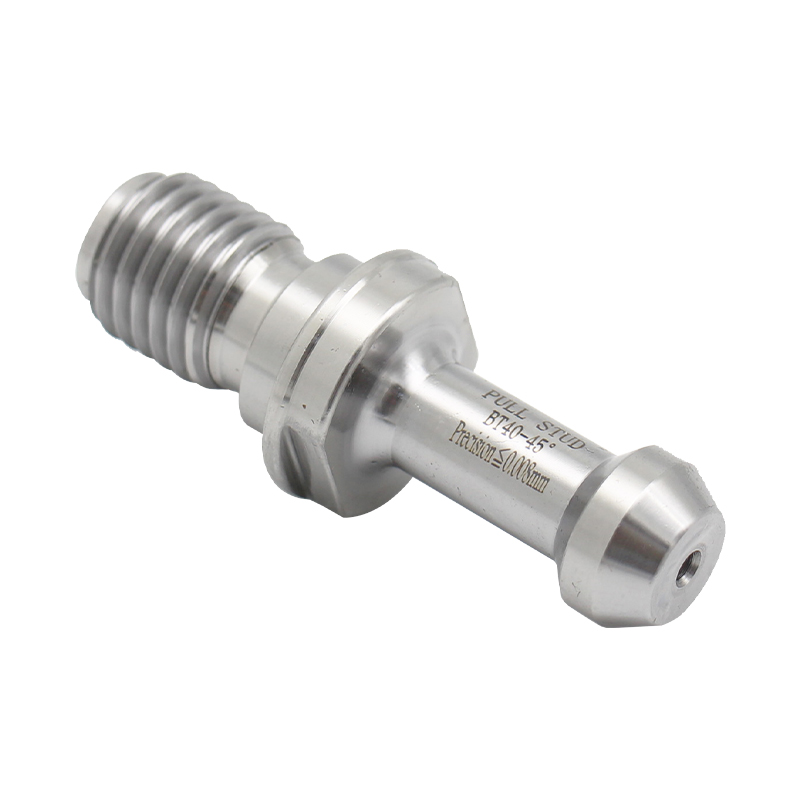

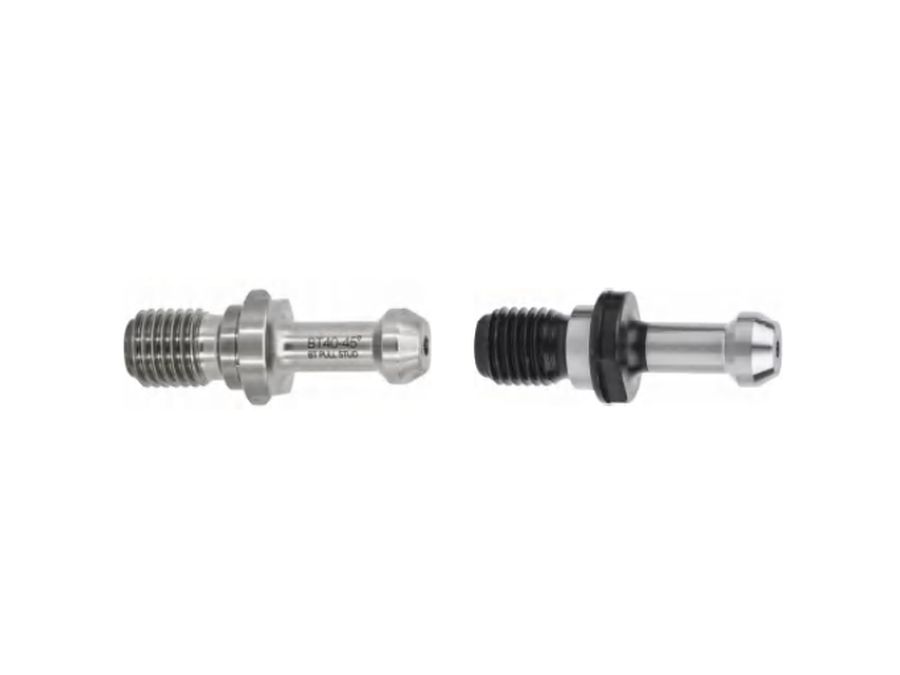

Product photos and sourcing references

A pull stud must match the machine exactly

A pull stud is small, but it is a safety and clamping part. It connects the tool holder to the machine drawbar mechanism. Industry supplier guides consistently warn that the wrong retention knob can damage the spindle or tool holder and may create a safety hazard. That is why ZSCNC treats model confirmation as the first step of quotation, not an afterthought.

A complete RFQ should confirm taper system, machine brand or standard, thread, angle, head shape, overall length, coolant structure, quantity and holder type. A buyer saying "BT40 pull stud" or "CAT40 retention knob" is not always enough. Different machine builders and tool holder systems may use different knob geometry even when the taper size looks similar.

If the buyer has a machine manual, old drawing, old model code or sample pull stud, send it with the inquiry. If not, clear photos from the side, thread end and head end can still help us narrow the correct direction before price confirmation.

BT, CAT, DIN, JIS, MAS and ANSI are not interchangeable

Pull studs are selected by both the tool holder and the machine spindle system. Buyers may ask for BT30, BT40, BT50, CAT40, CAT50, MAS403, DIN69872, JIS, ANSI or machine-specific styles. These are not just catalog words. They can involve different thread systems, flange relationships, gripper contact areas, coolant paths and head forms.

BT systems commonly use metric threads, while CAT systems commonly use inch threads. MAS and JIS style BT pull studs may look similar in photos, but the dimensions still need checking. CAT retention knobs may be specified by ANSI style, coolant-through style, machine brand or 45-degree style. DIN retention knobs also need the matching standard and drawing.

For importers and distributors, this means product naming should be controlled carefully. A single warehouse bin labeled only "BT40 pull stud" can create after-sales problems if it mixes different standards. ZSCNC can help separate models by standard, thread and customer SKU label to reduce repeat-order confusion.

Safety, wear and installation points buyers should not ignore

Retention knobs are wear parts. The contact area where the drawbar grips the knob, the first thread area, the underside of the head and the seating surface should be inspected regularly. Abnormal wear marks may indicate that the knob is wrong, the gripper system is worn, the drawbar force is not stable, or the holder is not seating properly.

Several industry references recommend proper tightening according to machine or tooling instructions. Over-tightening can distort the holder mouth or stress the threaded area; under-tightening can reduce clamping reliability. For real machine use, buyers should follow the machine builder's instruction, use proper sockets or torque tools where required, and avoid guessing by hand feel on high-speed or heavy-cutting applications.

For export supply, ZSCNC cannot replace the buyer's machine manual, but we can help avoid the common procurement mistake: buying a retention knob only by appearance or by taper size. When the application is high speed, heavy cutting, coolant-through, or a strict factory maintenance system, send more details before ordering.

Material, heat treatment and finish affect repeat purchasing

Good pull studs are normally made from suitable alloy steel and hardened for durability. Buyers should care about thread quality, surface finish, consistency of head geometry, model marking and batch separation. For a low-cost accessory, poor consistency can still create expensive machine downtime if the wrong part enters production.

For distributors, stable repeat supply is often more important than chasing the lowest one-time price. ZSCNC's advantage is practical sourcing control: we can help confirm the common model, organize mixed accessory orders, label similar parts clearly and keep repeat-order information so the next shipment does not start from zero.

Coolant-through, sealed and standard pull studs

Some pull studs are standard solid types. Others have coolant holes, sealing structure or O-rings for through-spindle coolant systems. A coolant-through machine should not be quoted as a normal non-coolant pull stud unless the buyer confirms it. The coolant path, sealing form and machine requirement all matter.

When requesting coolant pull studs, send whether you need coolant-through, sealed style, shoulder type, O-ring requirement, machine brand and old part reference. If the buyer only sends a product photo, we can still review the direction, but drawings and old samples make the quotation much safer.

Combine pull studs with matching tool holders

Pull studs often ship with CNC tool holders, ER collets, nuts, spanners, drill chuck arbors and boring heads. Quoting these items together reduces mismatch and helps the buyer check total landed cost. For example, a BT40 holder order may also need pull studs, ER nuts, ER collets and spanners; a CAT holder order may need CAT retention knobs and matching accessories.

This is where our price advantage is practical. Instead of buying small accessories from many places, overseas buyers can combine common CNC tooling accessories into one inquiry. ZSCNC can quote mixed model lists, reduce communication cost, support practical delivery planning and discuss neutral or OEM packing for resellers.

How ZSCNC supports price, delivery, QC and OEM packing

For pull studs and retention knobs, buyers usually care about three things: the model must be right, the price must be competitive, and the packing must prevent mix-ups. ZSCNC supports all three. We can help compare the model list, quote cost-efficient options for common BT, CAT, DIN, JIS and MAS styles, and arrange mixed accessory orders around your target delivery time.

Before shipment, practical QC focuses on model marking, thread condition, head form, surface finish, quantity separation and carton labels. For repeat buyers and distributors, we can discuss neutral bags, buyer labels, barcode stickers, carton marks and SKU-based packing. This makes the product easier to resell and easier to reorder.

Common product groups we can quote

RFQ checklist

To quote faster and avoid mismatch, send these details if available:

If you only have photos, old labels or a previous supplier model, send them as well. Clear photos often shorten the matching process.
